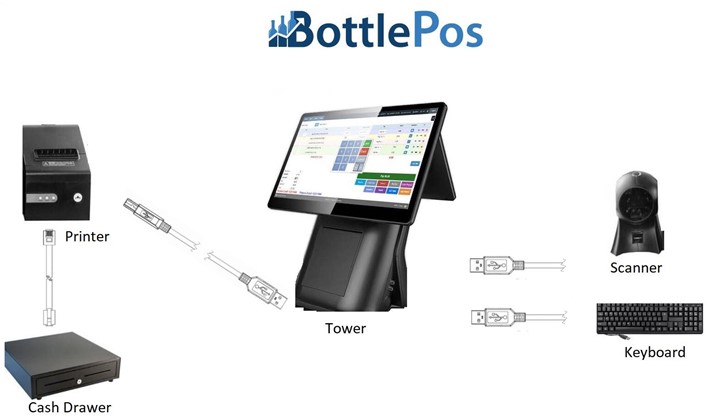

Description :   The  BOTTLEPOS bundle contains POS Tower  , Printer , Cashdrawer ,  Scanner , Keyboard , PINDPAD and Adapter . This article explains to know  the hardware connection between devices in Bottlepos Bundle .


Installation Video:




Connections :

POS Tower  :
  1. Under POS tower , there are 4 USB slots , 1 power plug , 1 LAN connection port (Internet /ethernet)
  2. Out of 4 USB slots , 3 USB slots are  used for connections like Printer , Keyboard , Scanner respectively .
  3. Connect the one end of Ethernet cable to the Tower and another end to a router or switch.
  4. Connect the power cable of the tower to the surge protector.

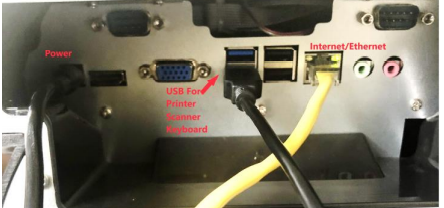

      Below Picture shows the Connections under the tower ;



Printer  :
  1.  1 USB C  which is used to connect  to under POS tower one
  2.  Connect the RJ11 (Phone Jack Cable) One end in Cash drawer and Another end Behind the Printer Next to the Power port .
  3.  Connect the Printer Power Cable to the surge protector and turn the printer on via switch on the side.



Barcode Scanner  :
  1. Connect the Barcode Scanner to USB port under the Tower.
Keyboard:
  1. Connect the keyboard Scanner to USB port under the Tower.
Cashdrawer :
  1. Connect the RJ11 (Phone Jack Cable) One end in Cash drawer and Another end Behind the Printer Next to the Power port.
Pin-Pad:

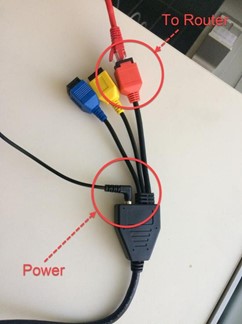

  1. Connect the Ethernet Port to the Red Port on the Pin pad Cable to Ethernet that goes to your router or switch for internet (Make sure both Ethernet port for the tower and in Pin pad are coming out of the same switch or router)
  1. Connect the L shaped Power cable into the hole in the Cable adapter and power into the surge protector.
