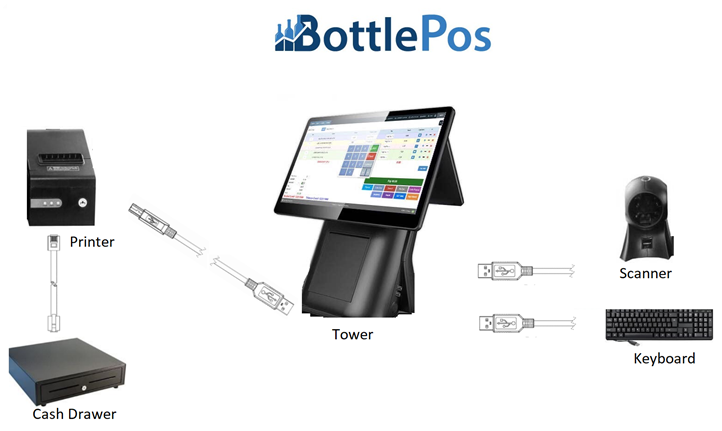

Bottlepos Hardware Setup

1)      Connect the RJ11 (Phone Jack Cable) One end in Cash drawer and Another end Behind the Printer Next to the Power port

2)      Connect the Printer USB-C port to USB Port under the Tower

3)      Connect the Barcode Scanner to USB port under the Tower

4)      Connect the Keyboard to USB Port under the tower

5)      Connect the one end of Ethernet cable to the Tower and another end to a router or switch

6)      Connect the Printer Power Cable to the surge protector and turn the printer on via switch on the side

7)      Connect the power cable of the tower to the surge protector.

8)    After computer starts call your implementation engineer, and then open ConnectWise application.

Back of Printer:

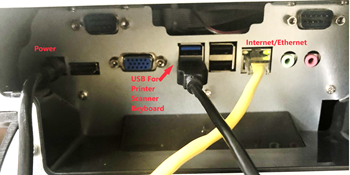

Under the Tower:

PAX Pin Pad Setup

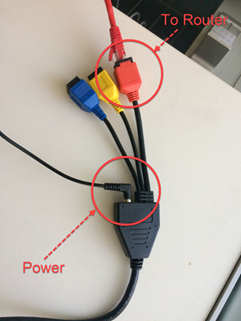

1)      Connect the Ethernet Port to the Red Port on the Pin pad Cable to Ethernet that goes to your router or switch for internet (Make sure both Ethernet port for the tower and in Pin pad are coming out of the same switch or router)

2)      Connect the L shaped Power cable into the hole in the Cable adapter  and power into the surge protector
