Router Change PAX machine configuration Procedure

Router Change PAX machine configuration Procedure

When customer is calling after router has changed or somehow their IP addresses in the network has changed. This Steps will help reconfigure the PAX machine with the correct IP address.


Step:1
Ask if both the Pin Pad and Computer are on the same network
Pin Pad


change LAN TYPE to DHCP from Static
step:1

press function key Password: 1010


step:2

Press 6 communication


step:3

 again put the password :1010


step:4
Press 8 Lan Parameters


step:5
press 1 and change to DHCP




step: 6
press "X" and go back to  Lan Parameters


Step:7

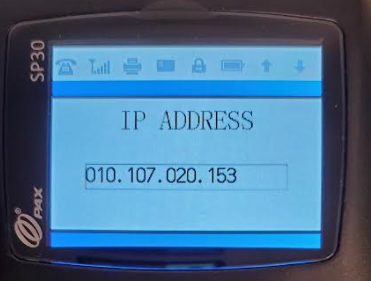

 press 2 and get IP Address

Use IP ADDRESS from Pin Pad


Step:2

Computer system
Open terminal and "ping 010.107.020.153"


Its pinging so Pin Pad and computer are on the same network. If it doesn't ping then they're not on the same router.

Step:3
Use "ipconfig" to get  New "IP Address, subnet mask and gateway"
Use that New IP  in PAX to set a new Parameter variables  and push the file
